Home >> Products >> Double Decker Structure Tent

    Double Decker Structure is two-story design which is distinguished into 2 kinds by shape, one is DDS herringbone canopy(span width from 10m to 30m,main pipe diameter:300x125x5/8mm), the other is ADDS dome  (span width from 15m to 30m, main pipe diameter: 300x125x5/8mm). This design is durable, max allowed wind speed to DIN is 100 mph(windloading 0.5kN/m2), Tent has a higher capacity of wind and snow load resistance.

    Frames are constructed by High-strength four-hole hollow aluminium alloy 6061/T6,fittings and connections are Hot-dip galvanized steel parts. Floor support structure inside is wooden beams,28mm thickness waterproof plywoodis used for the second floor.

    Double Decker Structure and Single Decker Structure both belong to modular structure tent, length can be increased or decreased infinitely in bay distance of 5.0m. Roof covers use double-sides PVC-coated synthetic fabric flame resistance is based on Europe standard DIN 4102B1. M2.



Size

Size

Span Width

Eave Height

Ridge Height

DDS300/250/310

3m

2.5m

3.1m

DDS500/250/350

5m

2.5m

3.5m

DDS1000/250/420

10m

2.5m

4.2m

DDS1500/400/570

15m

4m/5m

5.7m

DDS2000/400/660

20m

4m/5m

6.6m

DDS2500/400/750

25m

4m/5m

7.5m




Base

The ground work is flexible, suit for different condition of ground surface, such as uneven ground. In addition, different ground should adopt different methods, e.g. asphalt and grass ground should use steel nail, concrete ground should use expansion bolt and load plate suit for every ground.

System floor

We suppply various kinds of floor
1. Average Quality
2. Medium  Quality
3. Superior Quality

Side wall

1. PVC Faric Sidewall: widely used in party tent(marquee), exhibition tent(marquee), storage tent(marquee) and so on
2.Glass Panel Sidewall: widely used in party tent(marquee),warehouse tent(marquee) and so on
3.ABS Panel Sidewall: widely used in fair tent (marquee) storage tent (marquee)
4. Color Steel wall: widely used in storage tent (marquee)

System door

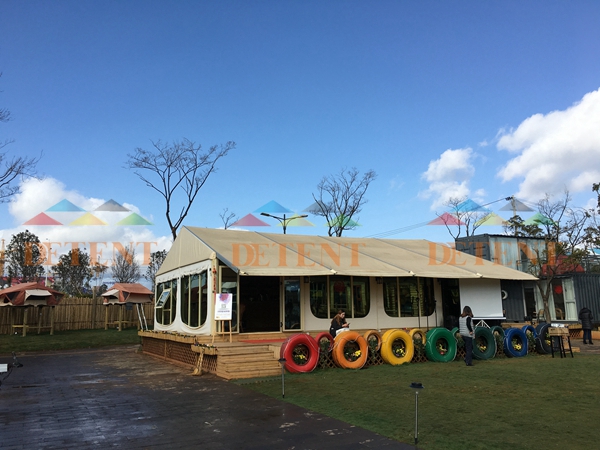

Gallery
